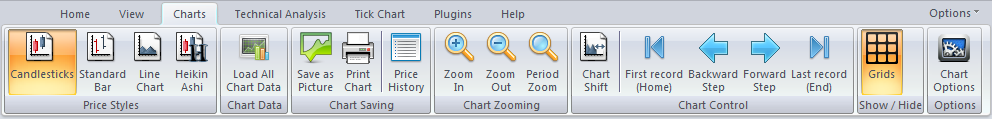

Charts Toolbar

This is the Charts Toolbar which you will be able from here to control the settings of viewing the chart window. It contains eight sections as the following:

1- Price Style

  • Candlesticks Candlesticks to view the chart candles as sticks in chart window.
  • Standard Bar StandardBar to view the chart candles as standard bar in chart window.
  • Line Chart  LineChart to view the chart as line in chart window.
  • Heikin Ashi  HeikinAshi to view the selected chart price style (Candlesticks, Standard Bar or Line Chart) as Heikin Ashi in chart window.

2- Chart Data

  • Load All Chart Data Load All Chart Data to load all data of the chart in chart window from beginning till now.

3- Chart Saving

  • Save as Picture SaveAsPic use this option to save the picture of the chart window on your computer as JPG.
  • Print Chart PrintChart use this option to print the picture of the chart if your computer is connected to a printer.


  • Price History  use this option to show the information of the chart as list.

4- Chart Zooming

  • Zoom in ZoomIn to maximize the zooming on the chart window.
  • Zoom Out ZoomOut to minimize the zooming on the chart window.
  • Period Zoom ZoomPeriod after selecting this option define the desired period to be zoomed in, by clicking in the starting of the period then another click on the end of the period in the chart window.

5- Chart Control

  • Chart Shift ChartShift Use this option to shift the chart away from the beginning of the chart window. After choosing this option a small pointer will show up on the top of the chart window that you can drag it to the desired place in the chart.
  • First record (Home) FirstRecord it drags the chart to the first record in chart history.
  • Backward Step BackwardStep to drags the chart step backward.
  • Forward Step ForwardStep to drags the chart step forward.
  • Last record (End) LastRecord it drags the chart to the last record in chart history.

6- Show /Hide

  • Grids Grids to show/ hide grids on the chart window.

7- Options

  • Chart Options ChartOptions opens the chart options tab from the System Options screen, which allow you to edit the settings and colors of the chart window.
